** Please note that this only
includes the Rachio Enclosure Weatherproof Box **
Click here to order the
Rachio Controller
14x10x4
Inch 120 VAC RACHIO Weatherproof Enclosure with Hook & Loop
Mounting
This
rugged, weather-proof composite enclosure is ideal for both indoor
and outdoor applications. The compact size of this enclosure makes it
ideal for
your new Rachio Controller.

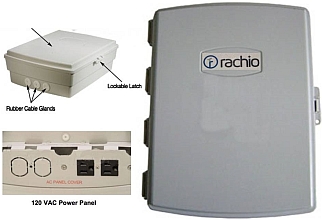

The 10.5" x 9.5" x 4" (266 x 241 x 101 mm) compartment features
a removable power module with two 120 VAC outlets. This power module
has
provisions to install two additional outlets. Cable access to the
inside of the
enclosure is via three rubber cable glands located on the bottom. The

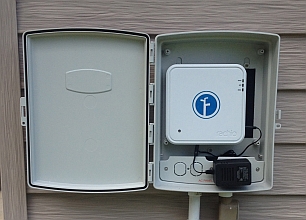

Rachio Controller
can be mounted inside the enclosure by using the included hook-and-loop
tape.
The raised lid features a continuous gasket and a quick release latch
with
provisions for a padlock. The enclosure material is UV stabilized
molded ABS.
Three gasketed mounting holes are provided inside the enclosure for
easy
installations.
Specifications
|
Enclosure
Material
|
Molded
UV Stabilized ABS
|
|
Enclosure
Color
|
Gray
|
|
Power
Module Voltage
|
120 VAC
|
|
Weight
|
4
lbs
|
|
Outside
Dimensions (max)
|
14.5 x
10.8 x 4.3 inches
(36.8 x 27.4 x 10.9 cm)
|
|
Inside
Dimensions
|
10.5 x
9.5 x 4 inches
(26.6 x 24.1 x 10.1 cm)
|
|
Cable
Feed
|
(3)
9/16” (14.2mm) Rubber Cable Glands
|
|
RoHS
Compliant
|
Yes
|
|
Ratings
|
NEMA
Type 3, 3X / IP55
|
